Deck Metal Forming Machine

Product name:

Deck Metal Forming Machine

Machine color:

White (can be customized according to customer requirements)

Operating Voltage:

380V 50Hz 3Ph (can be customized according to customer requirements)

Touch screen language:

Chinese-English (can be customized according to customer requirements)

Layout diagram:

(subject to the final signature and confirmation of both parties)

Material requirements:

Raw material: aluminum and galvanized

Thickness: 1.0-1.5mm

Tolerance: length ±1mm width and height ±0.5mm

Acceptance is based on fixed version, fixed thickness, and local materials provided by customers

Device parameters:

Total motor power: about 10.5kw

Equipment size: about 15m long * 1m wide

Equipment parameter requirements:

Process flow:

Passive uncoiler—feed guide—forming machine—shear—discharge

Schematic diagram of the process flow:

Passive uncoiler:

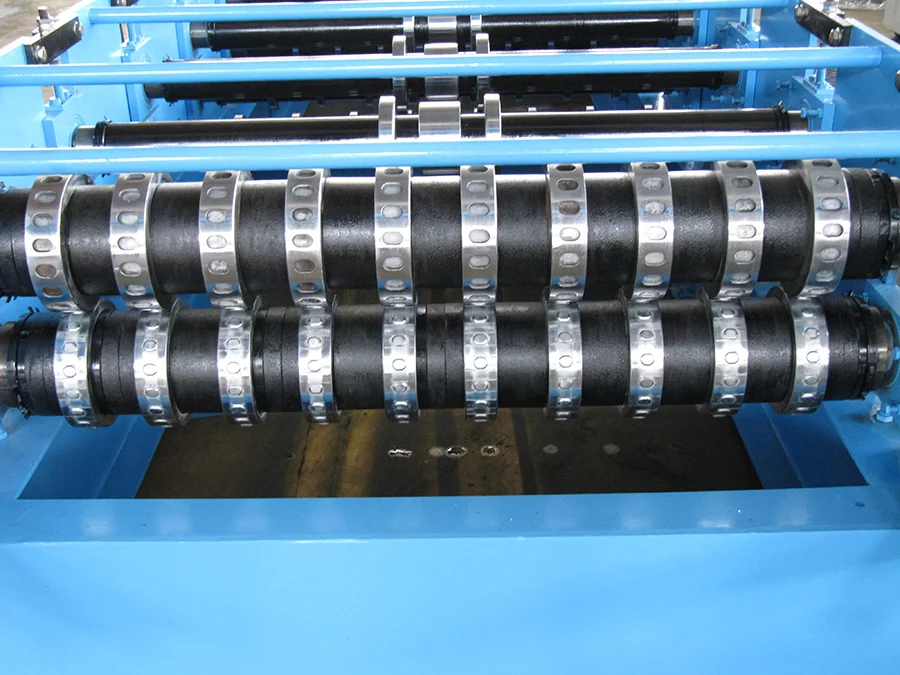

Embossing Part

Forming Machine:

Discharge table:

Control cabinet:

Schematic pictures are for reference only, the actual product shall prevail
